LP Capsule
Sensor Ready
Design by
Carsten Fischer/Henning Larsen
Color
Mounting type
Ø76 pole
Lighting control
Dim 0-10v
About this product

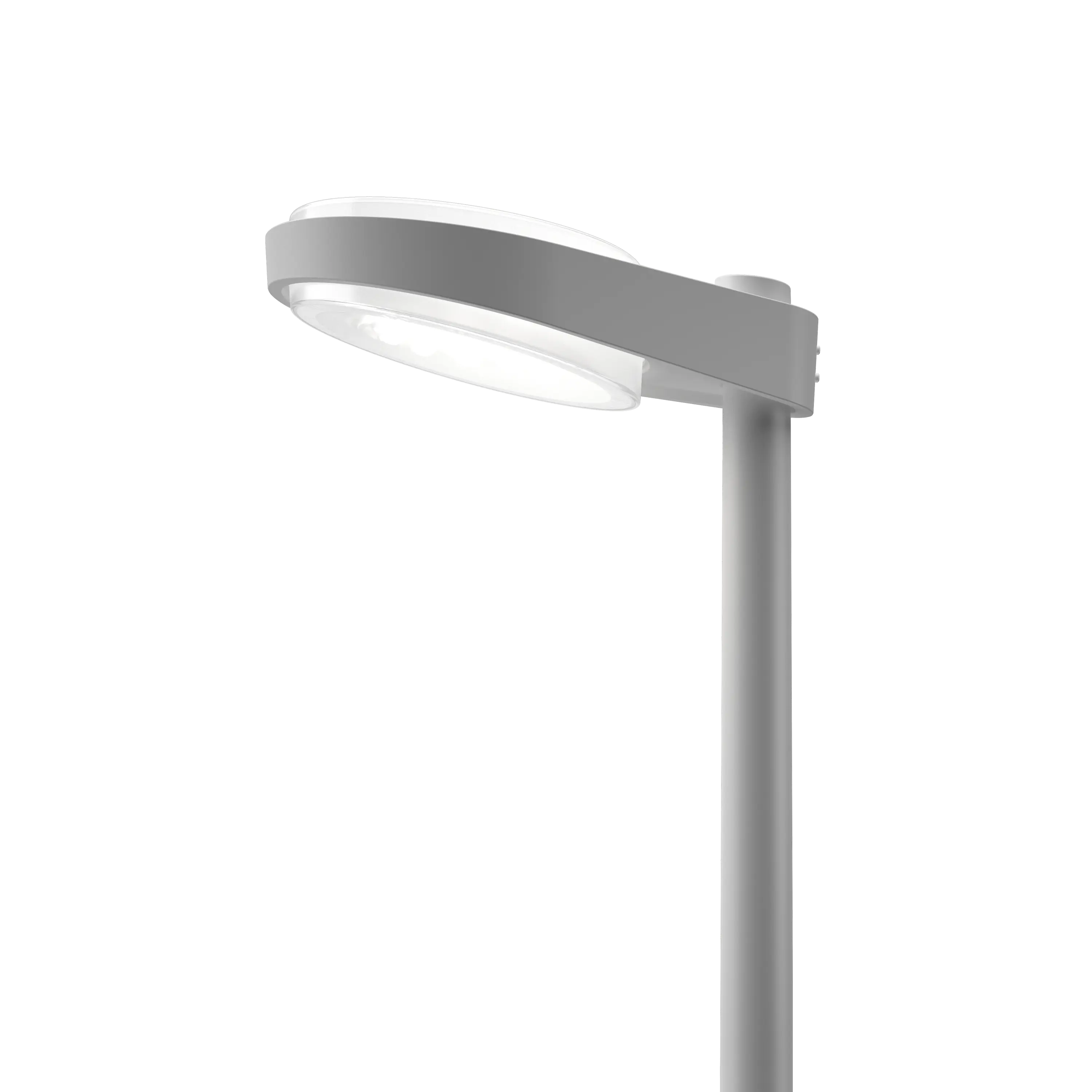

LP Capsule is characterized by a high degree of integration between the design elements. The fixture elegantly encircles the post for a more coherent solution. Viewed from above, the light consists of two circles – a large round lamp and a smaller round post where the tangents connect the two circles to form a simple geometric harmonious look. The basic idea was to create a cylindrical capsule, with the light source inside a single cylinder, which is in turn inside a larger opal cylinder. This is the source of the direct downward light, but by creating distance between the inner and outer cylinders, the fixture shines surplus light into the gap. Here it is reflected, illuminating the outer cylinder, which glows like a halo around the light source in the middle. This reduces glare and provides a smoother transition to the surrounding environment.
Light concept
Materials & finish
Size & measurements
Class & light source
Mounting
Information
Environmental Product Specification
Spare parts
Product variants - configurator
Your specification
LP Capsule, Natural paint aluminum, Ø76 pole, -, LED 3000K 20W, 1826, SYMMETRIC, Dim 0-10v
Copy
Color
Natural paint aluminum
Mounting
Ø76 pole
Ø76 pole
Ø115 pole
Light source
More...
LED 3000K 20W
LED 3000K 20W
LED 3000K 38W
LED 4000K 20W
LED 4000K 38W
Lumen
More...
1826
1826
1913
3263
3417
1956
2050
3496
3661
Distribution/Trim
SYMMETRIC
PRISMATIC (Urban Comfort)
SYMMETRIC
ASYMMETRIC
Lighting control
Dim 0-10v
Dim 0-10v
Dim 0-10v hi
LP Capsule
Variant 5747919352
(EAN: 5703411596180)
Product variants - list view
Variant number
| |||||
|---|---|---|---|---|---|
| Ø76 pole | PRISMATIC (Urban Comfort) | Dim 0-10v | 5747918065 | ||
| Ø115 pole | PRISMATIC (Urban Comfort) | Dim 0-10v | 5747918078 | ||
| Ø76 pole | LED 3000K 20W | 1826 | SYMMETRIC | Dim 0-10v | 5747919352 |
| Ø76 pole | LED 3000K 20W | 1913 | ASYMMETRIC | Dim 0-10v | 5747919433 |
| Ø115 pole | LED 3000K 20W | 1913 | ASYMMETRIC | Dim 0-10v | 5747919446 |
| Ø115 pole | LED 3000K 20W | 1826 | SYMMETRIC | Dim 0-10v | 5747919365 |
| Ø76 pole | LED 3000K 38W | 3263 | SYMMETRIC | Dim 0-10v hi | 5747919378 |
| Ø115 pole | LED 3000K 38W | 3263 | SYMMETRIC | Dim 0-10v hi | 5747919381 |
| Ø76 pole | LED 3000K 38W | 3417 | ASYMMETRIC | Dim 0-10v hi | 5747919459 |
| Ø115 pole | LED 3000K 38W | 3417 | ASYMMETRIC | Dim 0-10v hi | 5747919462 |
| Ø76 pole | LED 4000K 20W | 1956 | SYMMETRIC | Dim 0-10v | 5747919394 |
| Ø115 pole | LED 4000K 20W | 1956 | SYMMETRIC | Dim 0-10v | 5747919404 |
| Ø76 pole | LED 4000K 20W | 2050 | ASYMMETRIC | Dim 0-10v | 5747919475 |
| Ø115 pole | LED 4000K 20W | 2050 | ASYMMETRIC | Dim 0-10v | 5747919488 |
| Ø76 pole | LED 4000K 38W | 3496 | SYMMETRIC | Dim 0-10v hi | 5747919417 |
| Ø115 pole | LED 4000K 38W | 3496 | SYMMETRIC | Dim 0-10v hi | 5747919420 |
| Ø76 pole | LED 4000K 38W | 3661 | ASYMMETRIC | Dim 0-10v hi | 5747919491 |
| Ø115 pole | LED 4000K 38W | 3661 | ASYMMETRIC | Dim 0-10v hi | 5747919501 |
