Kastrup
Design by
Bennet Windinge & Povl Ernst Hoff
Color
About this product

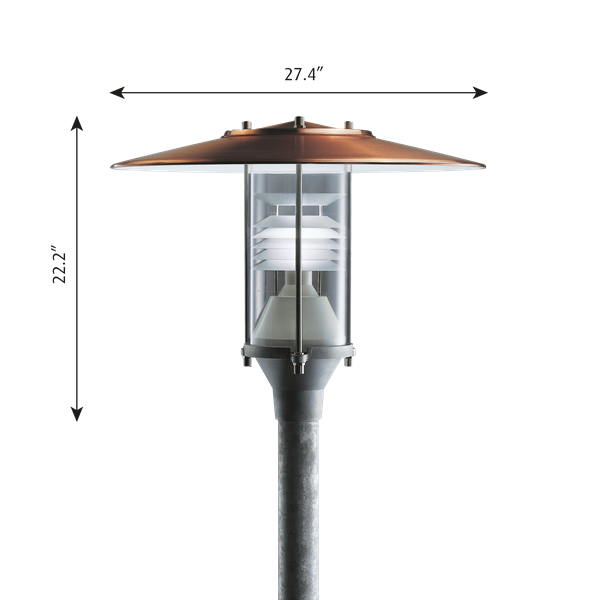

A classic cylindrically shaped luminaire with a modern reflector assembly consisting of a perfectly formed system of contoured graduated reflector shades made of aluminum polished to a mirror-like finish. Kastrup was designed to meet an increased demaind of higher levels of illumination for outdoor lighting. First used in a residential area in the northern part of Germany.
Light concept
Materials & finish
Size & measurements
Class & light source
Mounting
Information
Spare parts
Product variants - configurator
Your specification
Kastrup, Brushed copper, -, -, LED 3000K 57W, 3137, 120-277V/60HZ, -, T-DRA-5 IN-3 IN, Dim 0-10v
Copy
Color
Brushed copper
Light source
LED 3000K 57W
LED 3000K 57W
LED 4000K 57W
Lumen
3137
3137
3388
Transition to pole
T-DRA-5 IN-3 IN
T-DRA-5 IN-3 IN
T-RSA-4.5 IN
Kastrup
Variant 10000128527
(EAN: 5703411134559)
Product variants - list view
Variant number
| ||||
|---|---|---|---|---|
| LED 3000K 57W | 3137 | 120-277V/60HZ | T-DRA-5 IN-3 IN | 10000128527 |
| LED 3000K 57W | 3137 | 120-277V/60HZ | T-RSA-4.5 IN | 10000128530 |
| LED 4000K 57W | 3388 | 120-277V/60HZ | T-DRA-5 IN-3 IN | 10000128526 |
| LED 4000K 57W | 3388 | 120-277V/60HZ | T-RSA-4.5 IN | 10000128531 |
Download
Post Top Wind Load Technical Guide
Wind loading is an important consideration in determining the correct pole design that will safely support the mounted post top luminaires. Wind load evaluation estimates the forces applied to a pole when winds push against the mounted post top luminaire. A pole’s strength is determined by its specifications including material, height, and cross section geometry. The pole’s strength should exceed the estimated wind loads by a certain safety margin to be considered safe to use.
Download PDF
