About this product
Poul Henningsen designed the three-shade system during 1925/1926. The first lights using the system were designed for an exhibition in Paris. His work with Louis Poulsen continued until his death in 1967. Throughout his life, PH sought to create glare-free lighting; aiming to direct light where it was most needed, and creating soft shadows while using incandescent bulbs as a light source. The four-shade system was launched in 1931 to create a fixture that could be mounted high up and serve as an alternative to the commonly used chandeliers. The PH four-shade fixture was designed to increase the amount of light emitted horizontally to provide greater illumination of walls and shelves than was possible using standard three-shade lights. It was removed from the Louis Poulsen standard range in the 1940s, but was redesigned in 1979 by Danish architects, Sophus Frandsen and Ebbe Christensen, for the Charlottenborg exhibition building in Copenhagen (although in a larger size: PH 6½/6). To resolve the never ending glare problem, the two architects decided to add a small blue shade to the design. They also included a new surface with a more matte, white painted shade, to achieve a more even, comfortable light, ideal for museums and exhibition rooms or as general lighting in rooms with high ceilings. A smaller version, the 5/4½, was created for the Aarhus Concert Hall in 1984.
Light concept
Materials & finish

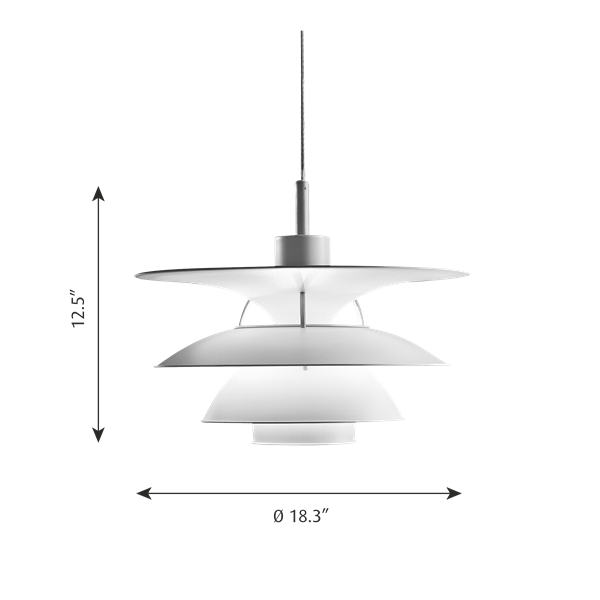

Size & measurements
Class & light source
Mounting
Information
Spare parts
Product variants - configurator
Your specification
PH 5-4½ & PH 6½-6, 5-4½, White, -, White fabric cord, LED 3000-1800K D2W 44W, 1446 lm / 44 W, 120-277V/60HZ, Dim 0-10v
Copy
Dimension
5-4½
5-4½
6½-6
Color
White
Light source
More...
LED 3000-1800K D2W 44W
LED 3000-1800K D2W 44W
LED 3000K 44W
LED 2700K 96W
LED 3000K 96W
Lumen/Watt
1446 lm / 44 W
1446 lm / 44 W
1755 lm / 44 W
4420 lm / 96 W
Voltage frequency
120-277V/60HZ
120-277V/60HZ
120V
Lighting control
Dim 0-10v
Dim 0-10v
Phase dimming (mains dimm)
PH 5-4½ & PH 6½-6
Variant 10000149869
(EAN: 5714693152261)
Product variants - list view
Variant number
| |||||
|---|---|---|---|---|---|
| 5-4½ | LED 3000-1800K D2W 44W | 1446 | 120-277V/60HZ | Dim 0-10v | 10000149869 |
| 5-4½ | LED 3000-1800K D2W 44W | 1446 | 120V | Phase dimming (mains dimm) | 10000149870 |
| 5-4½ | LED 3000K 44W | 1755 | 120-277V/60HZ | Dim 0-10v | 10000149867 |
| 5-4½ | LED 3000K 44W | 1755 | 120V | Phase dimming (mains dimm) | 10000149868 |
| 6½-6 | LED 2700K 96W | 4420 | 120-277V/60HZ | Dim 0-10v | 5741928695 |
| 6½-6 | LED 3000K 96W | 4420 | 120-277V/60HZ | Dim 0-10v | 5741938698 |
