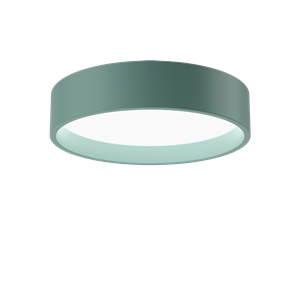

LP Circle Surface
Design by
Mikkel Beedholm MMA/KHR Arkitekter
Color
Size
18"
Lighting control
Dim 0-10v
About this product
The basic idea for LP Circle were born out of the experience with the Ørestad School OreLED fixture. Mikkel Beedholm of KHR arkitekter explains the design idea:
“The aim was for the fixture to not simply slice through the ceiling like a tin can – we wanted the collar to give the fixture character and interplay with the building’s architecture, adding an extra dimension to the interior through randomised reflection of the light.
The choice of colors has also been unusual for a ceiling fixture. The
colored rings improves the effect of reducing glare and highlighting the shape of the luminaire. They also add color to what are often colorless rooms, in both their lit and unlit state.”
Light concept
Materials & finish
Size & measurements
Class & light source
Mounting
Information
Environmental Product Specification
Spare parts
Product variants - configurator
Your specification
LP Circle Surface, 18", Pale petroleum, -, -, LED 3000K 30W, 2432, 120-277V/60HZ, LARGE OPAL POLY, Dim 0-10v
Copy
Dimension
18"
10.5"
18"
Color
More...
Pale petroleum
White
Black
Pale petroleum
Yellow
Light source
More...
LED 3000K 30W
LED 3000K 17W
LED 3500K 17W
LED 4000K 17W
LED 3000K 30W
LED 3500K 30W
LED 4000K 30W
Lumen
More...
2432
1334
1065
1126
1233
1082
1144
1356
1252
1377
2706
2341
2432
2577
2378
2471
2750
2618
2793
Lighting control
Dim 0-10v
Dali kelvin adjustable
Dim 0-10v
LP Circle Surface
Variant 10000140456
(EAN: 5714693866335)
Product variants - list view
Variant number
| ||||||
|---|---|---|---|---|---|---|
| 10.5" | White | 1334 | 120-277V/60HZ | Dali kelvin adjustable | 10000150264 | |
| 10.5" | Black | LED 3000K 17W | 1065 | 120-277V/60HZ | Dim 0-10v | 10000139858 |
| 10.5" | Pale petroleum | LED 3000K 17W | 1126 | 120-277V/60HZ | Dim 0-10v | 10000140460 |
| 10.5" | White | LED 3000K 17W | 1334 | 120-277V/60HZ | Dim 0-10v | 10000140462 |
| 10.5" | Yellow | LED 3000K 17W | 1233 | 120-277V/60HZ | Dim 0-10v | 10000140458 |
| 10.5" | Black | LED 3500K 17W | 1082 | 120-277V/60HZ | Dim 0-10v | 10000140455 |
| 10.5" | Pale petroleum | LED 3500K 17W | 1144 | 120-277V/60HZ | Dim 0-10v | 10000140461 |
| 10.5" | White | LED 3500K 17W | 1356 | 120-277V/60HZ | Dim 0-10v | 10000140463 |
| 10.5" | Yellow | LED 3500K 17W | 1252 | 120-277V/60HZ | Dim 0-10v | 10000140459 |
| 10.5" | White | LED 4000K 17W | 1377 | 120-277V/60HZ | Dim 0-10v | 10000140464 |
| 18" | White | 2706 | 120-277V/60HZ | Dali kelvin adjustable | 10000150265 | |
| 18" | Black | LED 3000K 30W | 2341 | 120-277V/60HZ | Dim 0-10v | 10000139814 |
| 18" | Pale petroleum | LED 3000K 30W | 2432 | 120-277V/60HZ | Dim 0-10v | 10000140456 |
| 18" | White | LED 3000K 30W | 2706 | 120-277V/60HZ | Dim 0-10v | 10000139817 |
| 18" | Yellow | LED 3000K 30W | 2577 | 120-277V/60HZ | Dim 0-10v | 10000140453 |
| 18" | Black | LED 3500K 30W | 2378 | 120-277V/60HZ | Dim 0-10v | 10000139815 |
| 18" | Pale petroleum | LED 3500K 30W | 2471 | 120-277V/60HZ | Dim 0-10v | 10000140457 |
| 18" | White | LED 3500K 30W | 2750 | 120-277V/60HZ | Dim 0-10v | 10000139818 |
| 18" | Yellow | LED 3500K 30W | 2618 | 120-277V/60HZ | Dim 0-10v | 10000140454 |
| 18" | White | LED 4000K 30W | 2793 | 120-277V/60HZ | Dim 0-10v | 10000139819 |
Download
Surface Mounted
