AJ Munkegaard Ceiling Lamp

Design by
Arne Jacobsen
Color

About this product

Arne Jacobsen designed the Munkegård fixture for Munkegårdsskolen in Søborg, Denmark in 1955. This recessed fixture illuminated the ceiling and evened out light contrasts. The fixture also had a discreet presence in the room, making it fully in line with Arne Jacobsens architectural approach.

Light concept

The fixture resembles a glass disc hovering just below the ceiling. This impression is primarily created by the illuminated opening. The diffuser provides soft uniform lighting. This fixture gives the room the illusion of extra height.

Materials & finish
MaterialsShade: 2-layer: matte-white acrylic and toughened glass. Edge ring: High lustre chrome plated, satin chrome plated or brushed cleared lacquered, brass.
Finish High lustre chrome plated, satin chrome plated or brushed brass. matte-white acrylic/toughened clear glass.

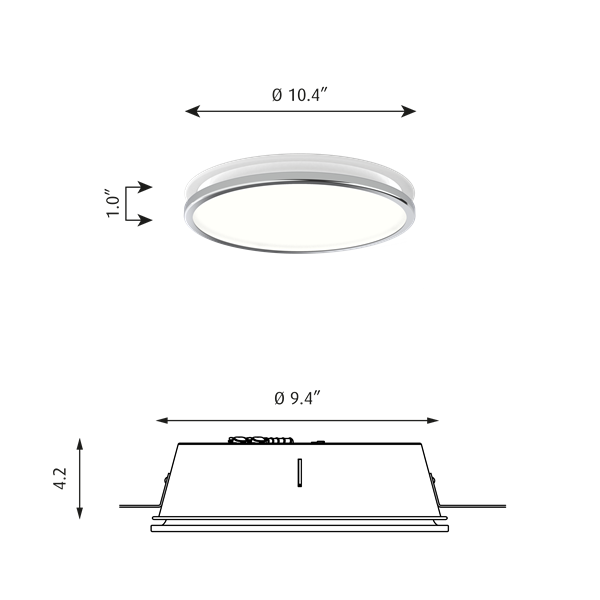

Size & measurements

width x Height x Length (in.)

10.4 x 6.7 x 10.4 Max 4.4 lbs

18.1 x 6.8 x 18.1 Max 8.0 lbs

20.7 x 6.8 x 20.7 Max 9.9 lbs

Class & light source cULus, Damp location. LED 3000K 15W
Lumen: 760
Mounting Semi-recessed: Provided with vertically adjustable brackets spaced equally. Luminaire frame should be structurally supported independent of the ceiling suspension and installed prior to closing the ceiling. Ceiling types: Accessible and non-accessible ceilings. Ceiling cutout: Ø9.5" (for Ø10.4"), Ø17" (for Ø18.1") and Ø19.5" (for Ø20.7"). Mounting instructions
InformationFor LED replacement kit please do contact Louis Poulsen. The innovation of the LED technology is constant. The specifications mentioned are based on present technology.
Environmental Product Specification
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused. Download environmental product information

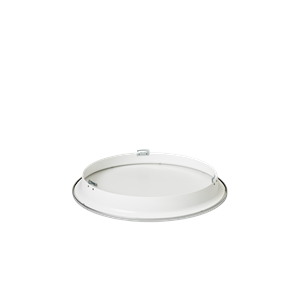

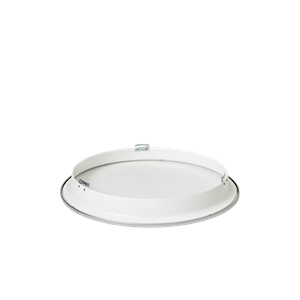

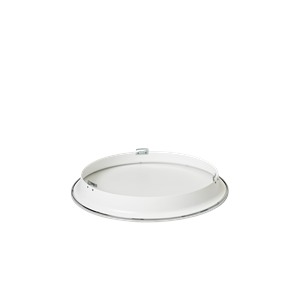

Spare parts
Munkegaard Ø265 LED opal Gls.W/Ring SAT CHR
Item no: 5742580126
Munkegaard Ø265 LED opal Gls.W/Ring CHR
Item no: 5742580139
Munkegaard Ø460 LED opal Gls.W/Ring SAT CHR
Item no: 5742580142
Product variants - configurator
Your specification AJ Munkegaard Ceiling Lamp, 10.4", High lustre chrome plated, -, -, LED 3000K 15W, 760, 120-277V/60HZ, I, OPAL, Dim 0-10v
Copy
Dimension
10.4"
10.4"
18.1"
20.7"
Color
High lustre chrome plated
Brass
High lustre chrome plated
Satin chrome plated
Light source
LED 3000K 15W
LED 3000K 15W
LED 3000K 30W
LED 3000K 42W
Lumen
760
760
2147
3104

AJ Munkegaard Ceiling Lamp

Variant 10000122540 (EAN: 5703411160756)
Product variants - list view
Variant number
10.4" Brass LED 3000K 15W 760 120-277V/60HZ 10000156009
10.4" High lustre chrome plated LED 3000K 15W 760 120-277V/60HZ I 10000122540
10.4" Satin chrome plated LED 3000K 15W 760 120-277V/60HZ I 10000122568
18.1" Brass LED 3000K 30W 2147 120-277V/60HZ 10000156010
18.1" High lustre chrome plated LED 3000K 30W 2147 120-277V/60HZ I 10000122541
18.1" Satin chrome plated LED 3000K 30W 2147 120-277V/60HZ I 10000122581
20.7" Brass LED 3000K 42W 3104 120-277V/60HZ 10000156011
20.7" High lustre chrome plated LED 3000K 42W 3104 120-277V/60HZ I 10000122542
20.7" Satin chrome plated LED 3000K 42W 3104 120-277V/60HZ I 10000122591
Download
