About this product

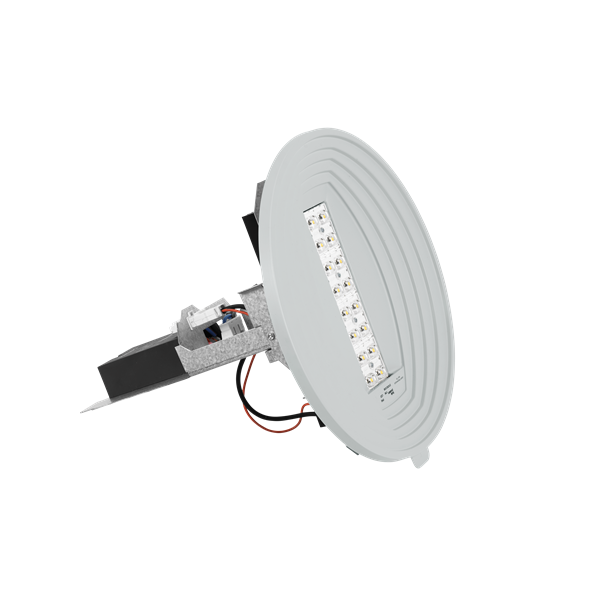

Icon Mini Opal was designed by Mads Odgård in 1999 for the small town of Flaa in Norway. He was given the task of creating a reflector-based light inspired by classic, simple forms but with a modern expression. Mads Odgård therefore based his design on a hemisphere and a cylinder. The LED-upgrade kit contains all the required parts to make LP Icon Mini even more future-proof that it already is.
Light concept
The fixture provides mainly direct downward illumination. The shade is lit up from within and creates a soft diffused upwards light. Depending on the choice of optics, the downward lighting characteristics will vary. The optics types have been designed in different variations to provide differint asymmetrical distributions of light. The LED-upgrade kit (also referred to as LED Retrofit kit) allows you to replace the old electrical components with a complete modern new LED unit, while retaining the original fixture.
Materials & finish
MaterialsLED console: extruded aluminum profile.
Reflector: Injection molded plastic (ASA. )
Light Distribution: Optics lenses.
Size & measurements
Class & light source
Lumen: 1527
Mounting
Information
Environmental Product Specification
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.
Download environmental product information
Spare parts
We supply spare parts, replacement parts, and accessories for a large number of our products.
Please contact us at info@louispoulsen.dk or +45 70 33 14 14.
Product variants - configurator
Your specification
LP Icon LED Upgrade Kit, White, -, -, LED 3000K 15W, 1527, II, ASYT3, Dpc: nightdim + clo, 1500 LUMEN
Copy
Colour
White
Light source
More...
LED 3000K 15W
LED 3000K 15W
LED 3000K 20W
LED 3000K 32W
LED 3000K 39W
LED 3000K 51W
LED 3000K 62W
LED 4000K 15W
LED 4000K 20W
LED 4000K 32W
LED 4000K 39W
LED 4000K 51W
LED 4000K 62W
Lumen
More...
1527
1527
1582
2010
2083
3133
3030
4235
4045
4993
4806
6078
5851
1655
1598
2180
2103
3279
3171
4432
4233
5225
5029
6360
6123
Light technique
ASYT3
ASYT3
ASY2
Lighting control
Dpc: nightdim + clo
Dpc: nightdim + clo
Clo
Special accessories
More...
1500 LUMEN
1500 LUMEN
2000 LUMEN
3000 LUMEN
4000 LUMEN
5000 LUMEN
6000 LUMEN
LP Icon LED Upgrade Kit
Variant 5747831249
(EAN: 5714693153800)
Product variants - list view
Variant number
| |||||
|---|---|---|---|---|---|
| LED 3000K 15W | 1527 | ASYT3 | Dpc: nightdim + clo | 1500 LUMEN | 5747831249 |
| LED 3000K 15W | 1582 | ASY2 | Clo | 1500 LUMEN | 5747830703 |
| LED 3000K 15W | 1527 | ASYT3 | Clo | 1500 LUMEN | 5747830758 |
| LED 3000K 15W | 1582 | ASY2 | Dpc: nightdim + clo | 1500 LUMEN | 5747831197 |
| LED 3000K 20W | 2010 | ASYT3 | Dpc: nightdim + clo | 2000 LUMEN | 5747831252 |
| LED 3000K 20W | 2083 | ASY2 | Clo | 2000 LUMEN | 5747830716 |
| LED 3000K 20W | 2010 | ASYT3 | Clo | 2000 LUMEN | 5747830761 |
| LED 3000K 20W | 2083 | ASY2 | Dpc: nightdim + clo | 2000 LUMEN | 5747831207 |
| LED 3000K 32W | 3133 | ASY2 | Clo | 3000 LUMEN | 5747830729 |
| LED 3000K 32W | 3030 | ASYT3 | Clo | 3000 LUMEN | 5747830774 |
| LED 3000K 32W | 3133 | ASY2 | Dpc: nightdim + clo | 3000 LUMEN | 5747831210 |
| LED 3000K 32W | 3030 | ASYT3 | Dpc: nightdim + clo | 3000 LUMEN | 5747831265 |
| LED 3000K 39W | 4235 | ASY2 | Clo | 4000 LUMEN | 5747830732 |
| LED 3000K 39W | 4045 | ASYT3 | Clo | 4000 LUMEN | 5747830787 |
| LED 3000K 39W | 4235 | ASY2 | Dpc: nightdim + clo | 4000 LUMEN | 5747831223 |
| LED 3000K 39W | 4045 | ASYT3 | Dpc: nightdim + clo | 4000 LUMEN | 5747831278 |
| LED 3000K 51W | 4993 | ASY2 | Clo | 5000 LUMEN | 5747825080 |
| LED 3000K 51W | 4806 | ASYT3 | Clo | 5000 LUMEN | 5747825093 |
| LED 3000K 51W | 4993 | ASY2 | Dpc: nightdim + clo | 5000 LUMEN | 5747825145 |
| LED 3000K 51W | 4806 | ASYT3 | Dpc: nightdim + clo | 5000 LUMEN | 5747825158 |
| LED 3000K 62W | 6078 | ASY2 | Clo | 6000 LUMEN | 5747830745 |
| LED 3000K 62W | 5851 | ASYT3 | Clo | 6000 LUMEN | 5747830790 |
| LED 3000K 62W | 6078 | ASY2 | Dpc: nightdim + clo | 6000 LUMEN | 5747831236 |
| LED 3000K 62W | 5851 | ASYT3 | Dpc: nightdim + clo | 6000 LUMEN | 5747831281 |
| LED 4000K 15W | 1655 | ASY2 | Clo | 1500 LUMEN | 5747830855 |
| LED 4000K 15W | 1598 | ASYT3 | Clo | 1500 LUMEN | 5747830981 |
| LED 4000K 15W | 1655 | ASY2 | Dpc: nightdim + clo | 1500 LUMEN | 5747831346 |
| LED 4000K 15W | 1598 | ASYT3 | Dpc: nightdim + clo | 1500 LUMEN | 5747831964 |
| LED 4000K 20W | 2180 | ASY2 | Clo | 2000 LUMEN | 5747830868 |
| LED 4000K 20W | 2103 | ASYT3 | Clo | 2000 LUMEN | 5747830994 |
| LED 4000K 20W | 2180 | ASY2 | Dpc: nightdim + clo | 2000 LUMEN | 5747831922 |
| LED 4000K 20W | 2103 | ASYT3 | Dpc: nightdim + clo | 2000 LUMEN | 5747831977 |
| LED 4000K 32W | 3279 | ASY2 | Clo | 3000 LUMEN | 5747830952 |
| LED 4000K 32W | 3171 | ASYT3 | Clo | 3000 LUMEN | 5747831113 |
| LED 4000K 32W | 3279 | ASY2 | Dpc: nightdim + clo | 3000 LUMEN | 5747831935 |
| LED 4000K 32W | 3171 | ASYT3 | Dpc: nightdim + clo | 3000 LUMEN | 5747831980 |
| LED 4000K 39W | 4432 | ASY2 | Clo | 4000 LUMEN | 5747830965 |
| LED 4000K 39W | 4233 | ASYT3 | Clo | 4000 LUMEN | 5747831126 |
| LED 4000K 39W | 4432 | ASY2 | Dpc: nightdim + clo | 4000 LUMEN | 5747831948 |
| LED 4000K 39W | 4233 | ASYT3 | Dpc: nightdim + clo | 4000 LUMEN | 5747831993 |
| LED 4000K 51W | 5225 | ASY2 | Clo | 5000 LUMEN | 5747825116 |
| LED 4000K 51W | 5029 | ASYT3 | Clo | 5000 LUMEN | 5747825129 |
| LED 4000K 51W | 5225 | ASY2 | Dpc: nightdim + clo | 5000 LUMEN | 5747825174 |
| LED 4000K 51W | 5029 | ASYT3 | Dpc: nightdim + clo | 5000 LUMEN | 5747825187 |
| LED 4000K 62W | 6360 | ASY2 | Clo | 6000 LUMEN | 5747830978 |
| LED 4000K 62W | 6123 | ASYT3 | Clo | 6000 LUMEN | 5747831139 |
| LED 4000K 62W | 6360 | ASY2 | Dpc: nightdim + clo | 6000 LUMEN | 5747831951 |
| LED 4000K 62W | 6123 | ASYT3 | Dpc: nightdim + clo | 6000 LUMEN | 5747832002 |
Download
LED Upgrade Kit
