About this product
Poul Henningsen designed the three-shade system back in 1925-1926. The first lights using the system were designed for an exhibition in Paris. His work with Louis Poulsen continued right up until his death in 1967. Throughout his life, PH sought to create glare-free light, direct light where it was most needed, and create soft shadows, using incandescent bulbs as a light source. The four-shade system was launched in 1931 to create a fixture which could be mounted high up and serve as an alternative to the commonly used chandeliers. The PH four-shade light was designed to increase the amount of light emitted horizontally to provide greater illumination of walls and shelves than was possible using standard three-shade lights. It was removed from the Louis Poulsen standard range in the 40s, but was redesigned in 1979 by two Danish architects – Sophus Frandsen and Ebbe Christensen – for the Charlottenborg exhibition building in Copenhagen, although in a larger size: PH 6½/6. To resolve the never ending glare problem, the two architects decided to add a small blue shade to the design. They also added a new surface with a more matte, white painted shade, to achieve a more even, comfortable light – ideal for museums and exhibition rooms or as general lighting in rooms with high ceilings. A smaller version, the 5/4½, was created for the Aarhus Concert Hall in 1984.
Light concept
Materials & finish
Size & measurements
Class & light source
Mounting
Information
Spare parts
Product variants - configurator
Your specification
PH 5-4½ & 6½-6 LED Upgrade Kit, White, -, -, LED 2700K 96W, 4686, Only suspension Kit, Dali, INT. DRIVER
Copy
Colour
White
Cable type
-
-
White fabric cord
Light source
More...
LED 2700K 96W
LED 2700K 96W
LED 3000-1800K D2W 41W
LED 3000K 41W
LED 3000K 96W
Lumen
More...
4686
4686
1446
1755
4875
Lighting control
Dali
Dali
Wireless bluetooth
Phase dimming (mains dimm)
Special accessories
INT. DRIVER
INT. DRIVER
EXT. DRIVER
Retrofit Kit

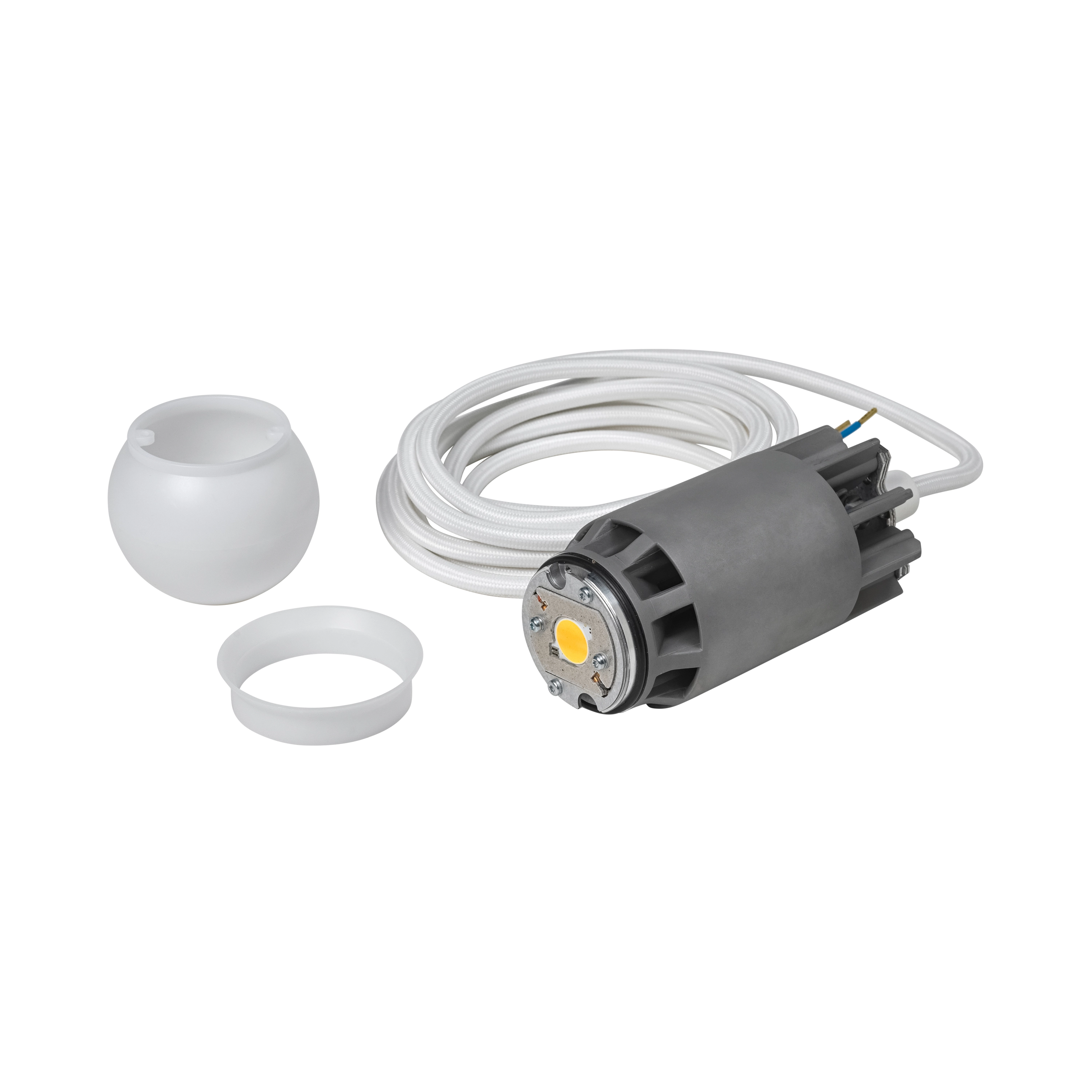

PH 5-4½ & 6½-6 LED Upgrade Kit
Variant 5741110979
(EAN: 5703411744963)
Product variants - list view
Variant number
| |||||||
|---|---|---|---|---|---|---|---|
| - | LED 2700K 96W | 4686 | Only suspension Kit | Dali | INT. DRIVER | 5741110979 | |
| - | LED 2700K 96W | 4686 | Only suspension Kit | Dali | EXT. DRIVER | 5741110995 | |
| - | LED 2700K 96W | 4686 | Only suspension Kit | Wireless bluetooth | INT. DRIVER | 5741111017 | |
| White fabric cord | LED 3000-1800K D2W 41W | 1446 | I | Phase dimming (mains dimm) | Retrofit Kit | 5741102518 | |
| White fabric cord | LED 3000-1800K D2W 41W | 1446 | I | Dali | Retrofit Kit | 5741102521 | |
| White fabric cord | LED 3000-1800K D2W 41W | 1446 | I | Wireless bluetooth | Retrofit Kit | 5741102534 | |
| White fabric cord | LED 3000K 41W | 1755 | I | Dali | Retrofit Kit | 5741102547 | |
| - | LED 3000K 96W | 4875 | Only suspension Kit | Dali | INT. DRIVER | 5741110982 | |
| - | LED 3000K 96W | 4875 | Only suspension Kit | Dali | EXT. DRIVER | 5741111004 | |
| - | LED 3000K 96W | 4875 | Only suspension Kit | Wireless bluetooth | INT. DRIVER | 5741111020 |
Download
